Registering the 1911 Anastasios Stathopoulos dimensions

Just before ordering a custom 1910s style, case !

Few months ago, the need for the creation of a custom case for the Anastasios Stathopoulos 1911 bouzouki, prompted me to register the exact dimensions of this historical musical instrument..

And since until now, these dimensions were not publicly available I thought to share them with all the loyal followers of this blog.

The dimensions taken, include  the 0.5 cm length of the tailpiece , bringing the total length of the instrument to 92 cm


The widest part of the soundboard measures 23 cm, and the maximum length 35.5 cm (including tailpiece)



The width of the soundboard at the sound-hole height, is 18.5 cm

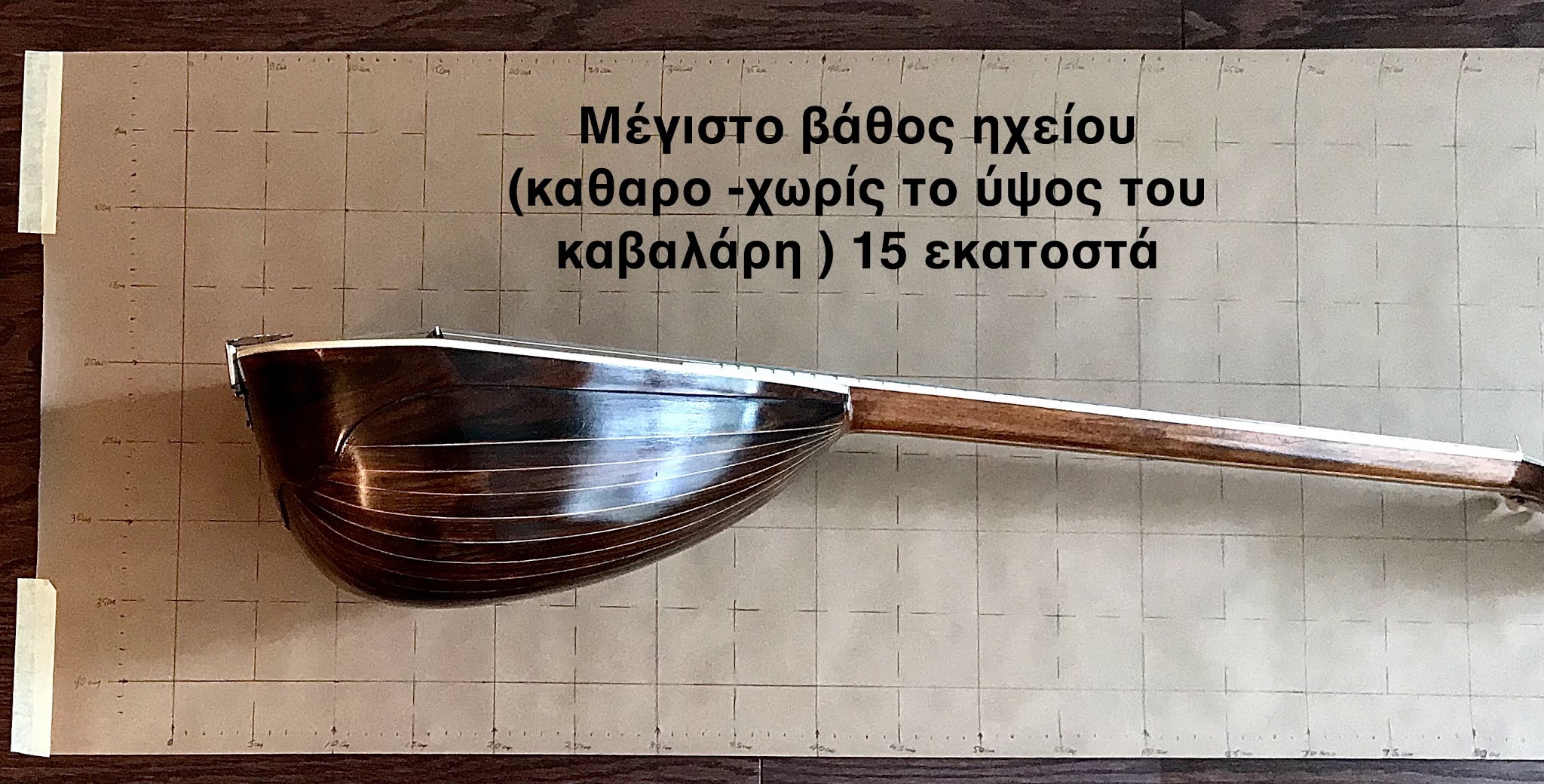

Maximum depth of the bowl is 15 cm


The total length of the neck from the bowl connection to the nut, is 40.5 cm

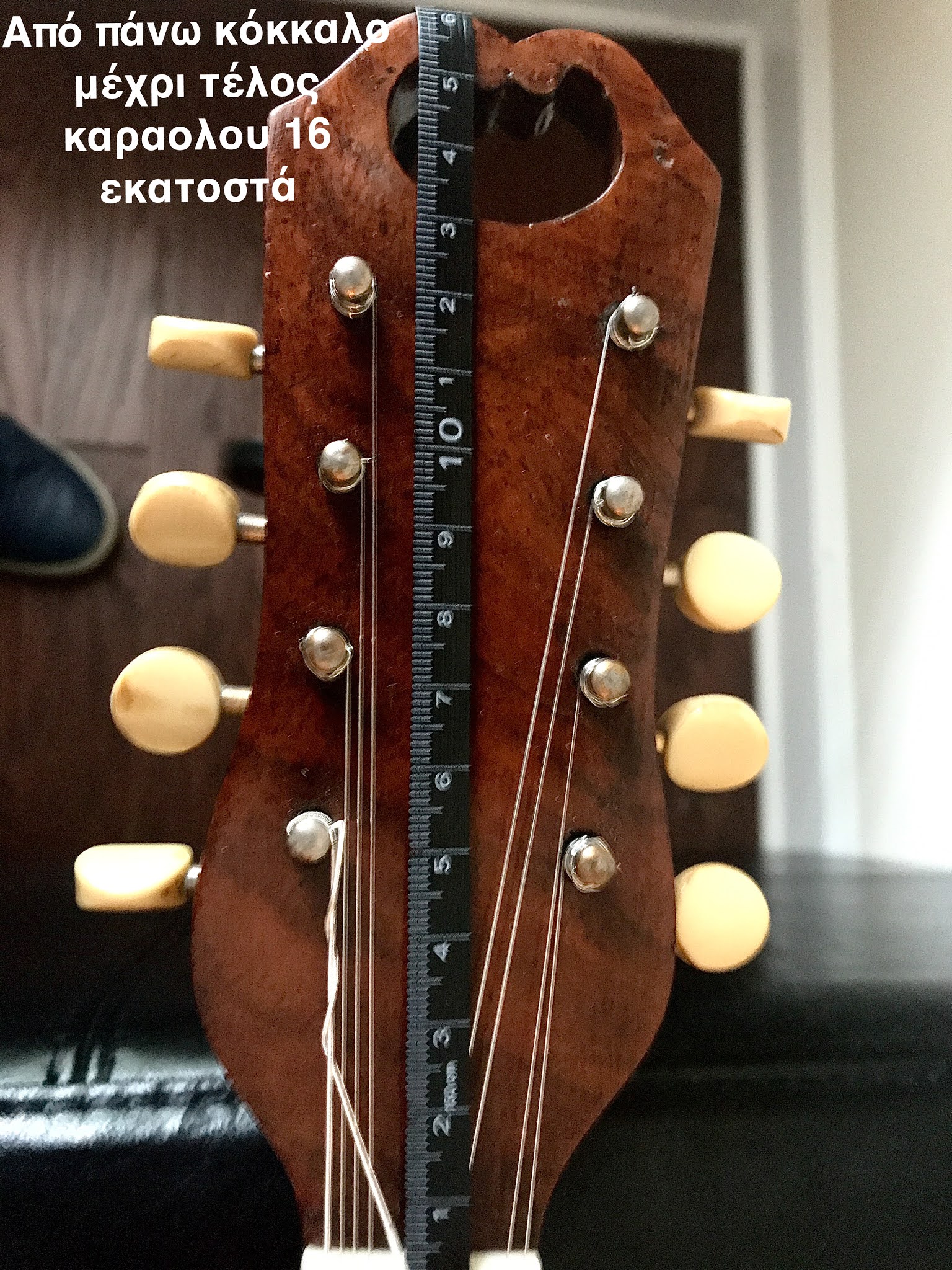

The total length of the headstock is 16 cm, and the maximum width ( including the knobs) 9.5 cm. Maximum width without the knobs 6cm.




Thickness of the neck (close to the bowl connection ) is 3 cm


The height ( angle /slope of headstock ) is 3.5 cm


The width of the fretboard close the bowl connection is 4 cm, and close to the nut , 3cm



The depth the of the bowl at the center of the sound-hole, is 13 cm

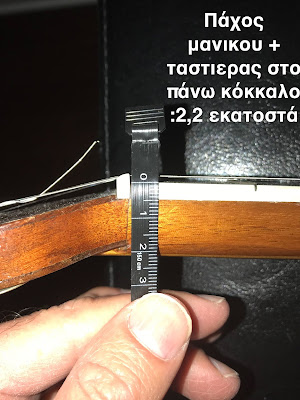

Finally,  the thickness of the neck with the fretboard close by the bowl connection is 3cm, and the thickness close to the nut is 2.2 cm
